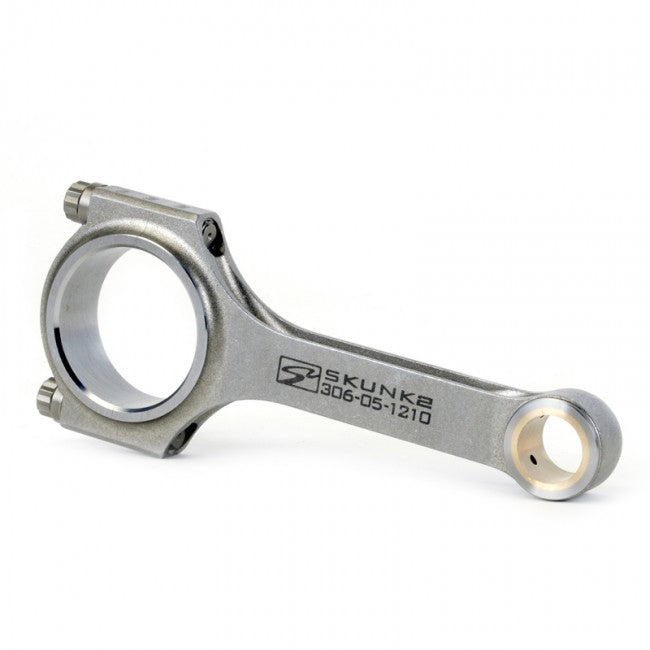

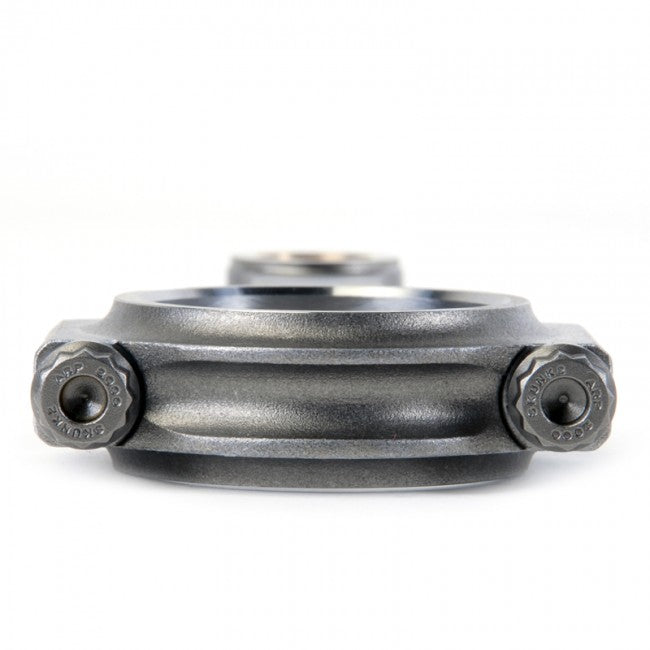

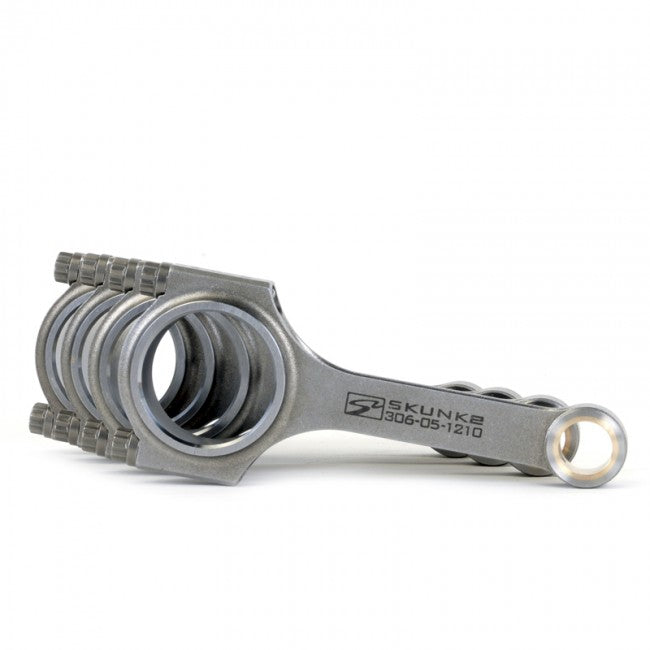

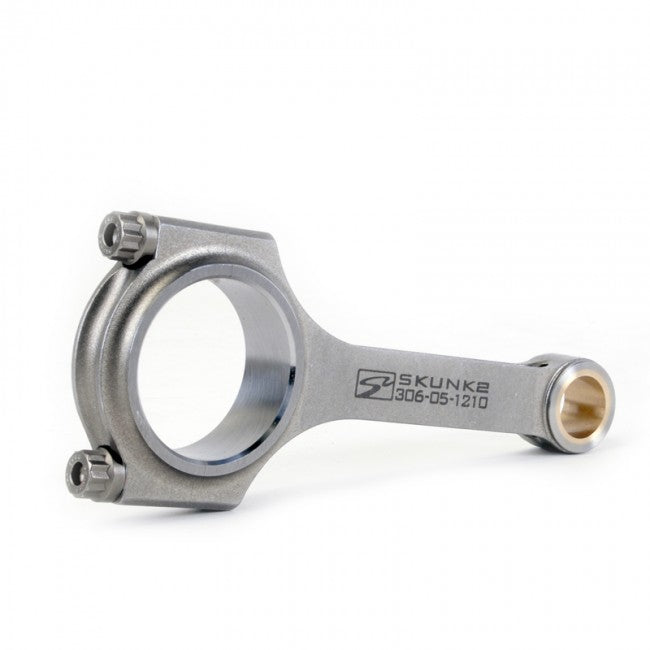

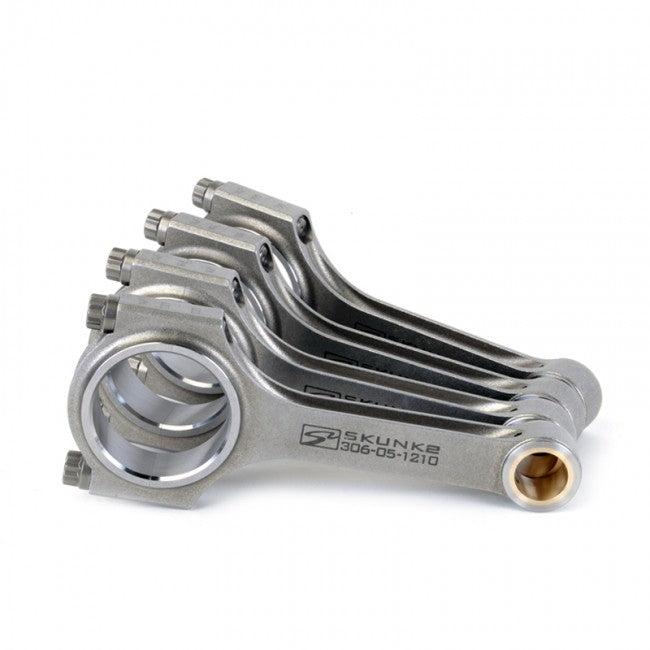

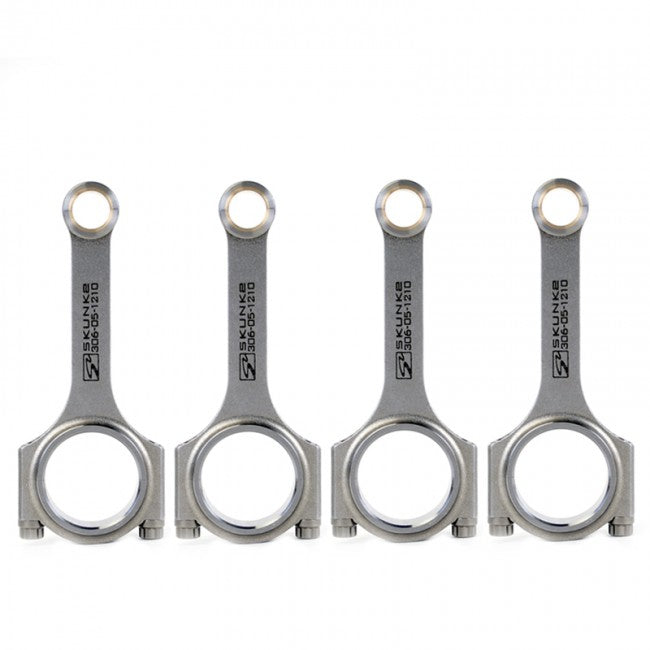

Skunk2 Alpha Lite Series Connecting Rods (Honda D16 D16ZC / Civic)
Brand: Skunk2 Racing
Part #: 306-05-1210
![]() |
Orders Over $100 |
![]() |
Orders Before 3pm CST |
Skunk2 is proud to introduce its all-new Lite Alpha Series Connecting Rods for Hondas D16A and ZC engines. The Lite rod is made for lower horsepower application were maximum effort is not required making the rod with a narrower beam we reduced weight. Alpha Series Rods are forged from select 4340 chromoly steel and feature straight H-beam design, resulting in the ultimate strength-to-weight ratio. The D Lite Rods were designed for the Naturally Aspirated or Low Turbo build D Series. The D Lite rods can withstand up to 450+ hp all while maintaining the weight reduction. Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2’s straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary. Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2’s carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle.
VEHICLE FITMENT
VEHICLE FITMENT
Year | Make | Model | Submodel |
---|---|---|---|
1990-2000 | Honda | Civic | EX |
1988-1991 | Honda | Civic | RT 4WD |
1989-1995 | Honda | Civic | Si |
1993-1997 | Honda | Civic del Sol | Si |
1988-1991 | Honda | CRX | Si |
