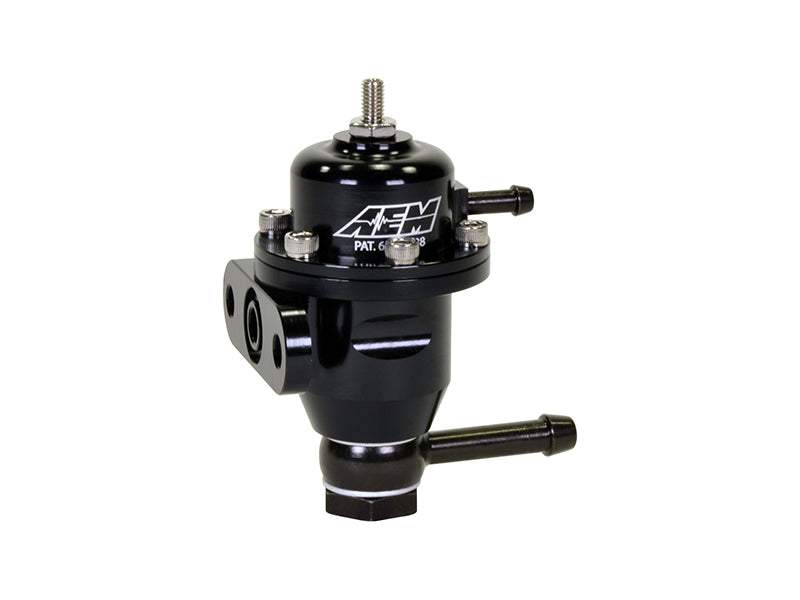

AEM Adjustable Fuel Pressure Regulator (88-91 Civic / CRX - 90-93 Integra - Prelude)

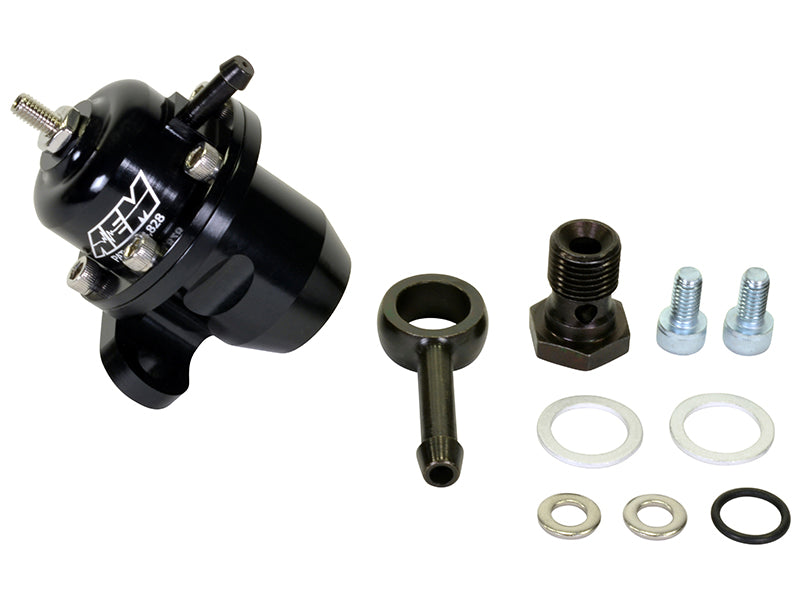

AEM's Honda/Acura Adjustable Fuel Pressure Regulators are capable of supporting enough fuel flow for engines up to 1000 horsepower. Our patented interchangeable discharge ports enable the regulator's output to match the output of any fuel pump. A single large discharge orifice is included. AEM includes a custom barb fitting to accommodate the factory fuel hose and the base of each regulator is tapped to accept a -6 AN or 9/16"x18 fittings.

FEATURES
CNC-machined from 6061-T6 billet aluminum
Mounts directly to O.E. fuel rail or AEM High Volume Fuel Rail
Accept a -6 AN or 9/16”x18 fittings
Adjustable from 20 psi to maximum fuel pump capacity
Boost dependent rising fuel pressure rate (1:1)
No additional parts required for installation

VEHICLE FITMENT

Year	Make	Model	Submodel
1990-1993	Acura	Integra	GS
1992-1993	Acura	Integra	GS-R
1986-1993	Acura	Integra	LS
1987-1988	Acura	Integra	LS Special Edition
1986-1993	Acura	Integra	RS
1999	Acura	NSX	Alex Zanardi Edition
1991-2001	Acura	NSX	Base
1995-2002	Acura	NSX	T
1995-1998	Acura	TL	Base
1995-1998	Acura	TL	Premium
1992-1994	Acura	Vigor	GS
1992-1994	Acura	Vigor	LS
1990-1991	Honda	Civic	EX
1988-1991	Honda	Civic	RT 4WD
1989-1991	Honda	Civic	Si
1988-1991	Honda	CRX	HF
1988-1991	Honda	CRX	Si
2000-2002	Honda	Insight	Base
1997-2001	Honda	Prelude	Base
1995	Honda	Prelude	SE
1992-1996	Honda	Prelude	Si
1992-1993	Honda	Prelude	Si 4WS
1997-2001	Honda	Prelude	Type SH
1993-1996	Honda	Prelude	VTEC
